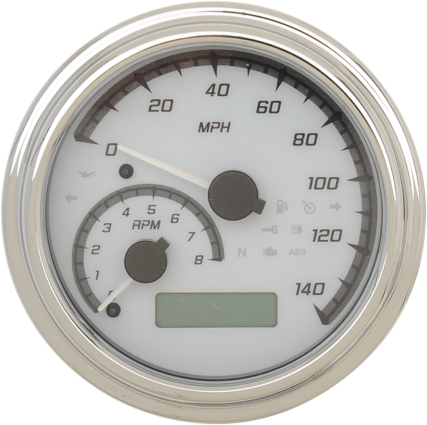

- Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
- Systems for 99-03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
- Systems for 11-17 models feature 31 user-selectable colors for pointer, backlight and LCD message center
- Four different face options available: black with red accents, black with gray accents, white with red accents and white with gray accents
- 8000 rpm tachometer has adjustable shift point and can display in digital numeric readout
- Resettable miles to service with a warning (user settable countdown) and hour meter
- Clock function (12-hour format)
- Voltage readout with low-voltage alert
- Cylinder head temperature sensor (if bike is equipped with factory sender unit)
- Oil pressure warning light (sold separately, PART #2212-0513 or DS-250019)
- Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
- Security system indicator
- Automatic turn signal cancelling compatible
- Wait to start/check engine light function
- Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4-mile time and speed

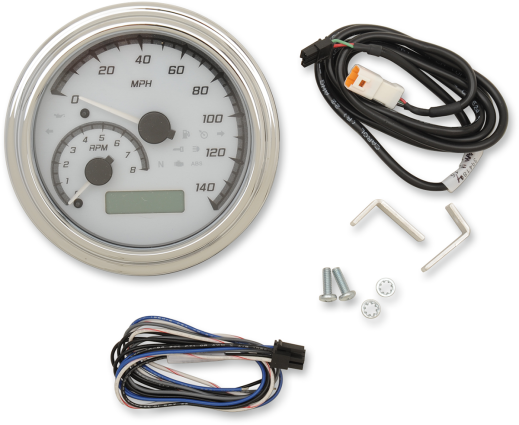

- Wiring installation is cut/splice; not a direct plug-in gauge
- Case diameter measures 41/4" and bezel diameter of 45/8"
| Year | Make | Model |
|---|---|---|
| 2011 - 2013 | Harley-Davidson | Blackline - FXS |
| 2013 - 2017 | Harley-Davidson | Breakout (EFI) FXSB |
| 2011 | Harley-Davidson | Cross Bones (EFI) - FLSTSB |
| 2011 - 2017 | Harley-Davidson | Deluxe (EFI) - FLSTN |
| 2012 - 2017 | Harley-Davidson | Dyna Fat Bob (EFI) - FXDF |
| 2014 - 2017 | Harley-Davidson | Dyna Low Rider (EFI) -FXDL |
| 2016 - 2017 | Harley-Davidson | Dyna Low Rider Sport - FXDLS |
| 2012 - 2017 | Harley-Davidson | Dyna Street Bob (EFI) - FXDB |
| 2012 - 2014 | Harley-Davidson | Dyna Super Glide Custom (EFI) - FXDC |
| 2012 - 2017 | Harley-Davidson | Dyna Wide Glide (EFI) - FXDWG |
| 2011 - 2017 | Harley-Davidson | Fat Boy (EFI) - FLSTF |
| 2011 - 2016 | Harley-Davidson | Fat Boy Lo - FLSTFB |
| 2015 - 2017 | Harley-Davidson | Fatboy S - FLSTFBS |
| 2012 - 2017 | Harley-Davidson | FLS Slim |
| 2011 - 2017 | Harley-Davidson | Heritage Classic (EFI) - FLSTC |
| 2014 - 2016 | Harley-Davidson | Road King (EFI) - FLHR |
| 2016 - 2017 | Harley-Davidson | Softail Slim S - FLSS |
