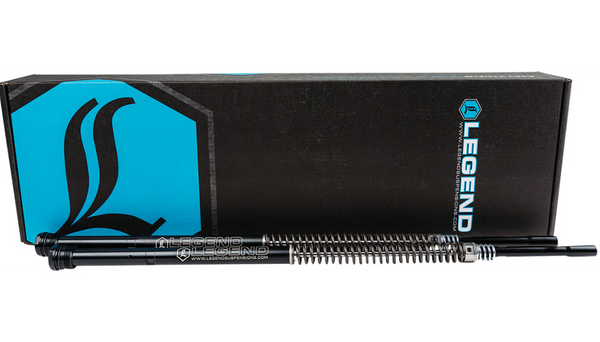

Legend 39mm +2 Cartridges



  • Innovative through shaft design is first of its kind in front fork application, not like others offering spring drop in or nitrogen
  • Legend's 39mm cartridge easily installs in a few simple steps
  • Includes two mono-tube, damper cartridges
  • Unique through-shaft technology so there is no pressure at end of stroke

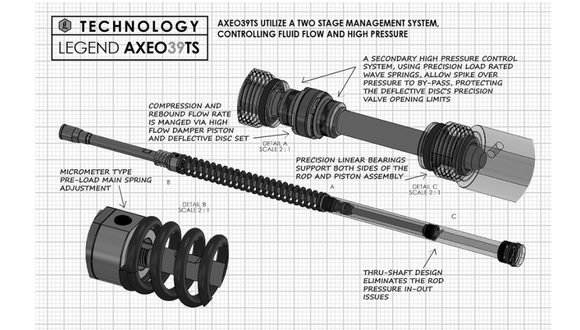

  • Utilizes a two-stage management system controlling fluid flow and high pressure
  • Compression and rebound flow rate is managed via high-flow damper piston and deflective disc set
  • Secondary high pressure control system, using precision load rated wave springs, allowing spike overpressure to bypass, protecting the deflective disc's precision valve opening limits
  • Through shaft eliminates the rod pressure in-and-out issues, plus piston rod is always in fluid
  • Two precision linear bearings support both sides of the rod and piston assembly
  • 39mm fork cartridge has a proprietary performance mainspring
  • Machined 303 stainless threaded preload adjuster
  • Increased preload range allows fine tuning for various riding styles and weights
  • 5" of travel
  • Ride quality is smooth and controlled
  • Improves stability, cornering and traction
  • Eliminates front-end dive during aggressive braking and maneuvering
  • Firm feel for high-speed sweeping turns
  • Eliminates bottoming out on large bumps or potholes
  • Legend's 39mm fork cartridge reduces dragging pegs
  • Designed for optimum performance with Legend rear suspension system
  • Includes Maxima Racing Oil in cartridge and quart bottle
  • Maintains stock hydraulic bump stop
  • Purchase of new fork cups recommended or installer will have to remove from stock forks
  • Made in the U.S.A.


NOTE: Legend's 39mm cartridge installation requires the purchase of 2" longer than stock Custom Cycle Engineering 39mm fork stanchion tubes, PART #s DS-221472, 0404-0065, 0404-0325 or 0404-0335, sold separately.


NOTE: Installation on 87-90 XL requires the purchase of lower fork stops, OEM #45361-90.
