- Performance spring rate delivers agile handling for aggressive riders without sacrificing comfort
- Specifically designed to increase ride height on FL touring models
- Imporves cornering clearance, lean angles, and eliminates dragging floorboards and footpegs
- Improves straight-line stability, high-speed cornering, and maneuverability
- Increases resistance to bottoming out on large bumps or potholes
- Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range
- Reduces front-end dive and improves front tire traction under aggressive braking
- Designed for optimum performance with Legend's 14" Revo-Arc rear suspensions

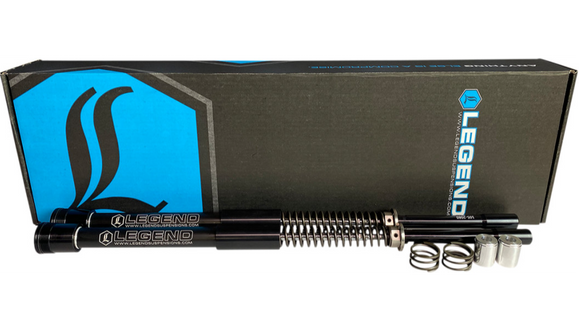

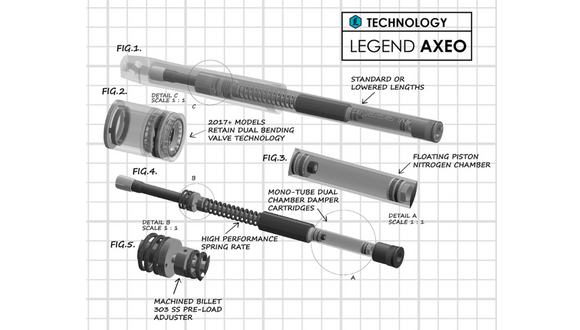

- Includes two 2" over monotube, dual chambered damper cartridges, and two top out springs
- Designed to be used with stock diameter front wheels
- For Extended Fork Tubes
- PLEASE NOTE:
- • This product is not designed for use with 21" or 23" front wheels.
- • Requires the use of Harley Davidson upper fork tubes OEM P/N 45500123 (24.31" long) or Drag Specialties P/N 0404-0505 (24.25"). Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle.
- • '99-'01 models equipped with stock air forks will require additional purchase of Harley-Davidson OEM #45419-80 (2) and 45733-48 (2) to install.
- • Does not fit '23-'24 FLHXSE/FLTRXSE/FLTRXSTSE.
