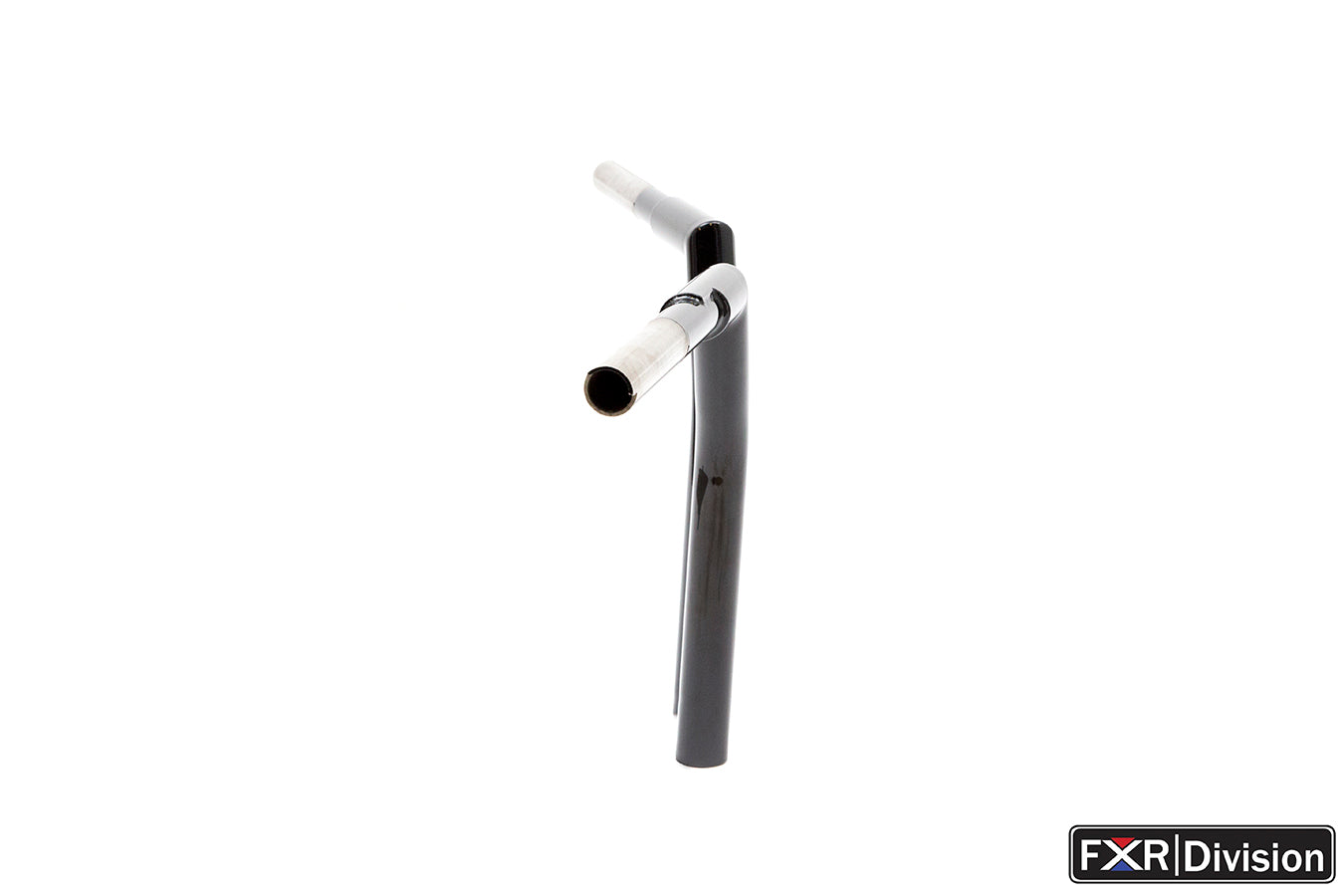

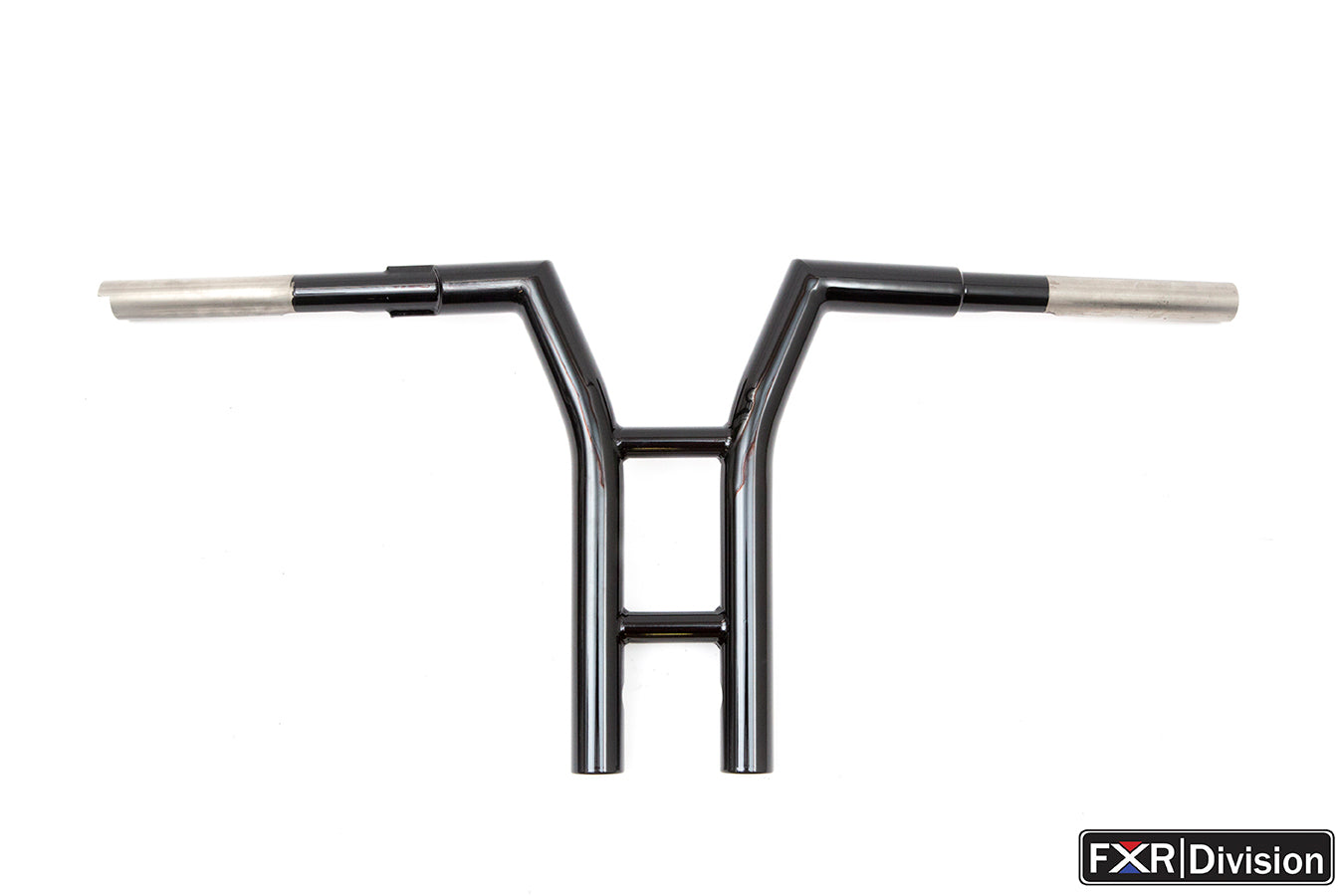

FXR Division Split Angle T Bars
At FXR Division, we're always doing things that are a little outside the box. The ORIGINAL FXR Division Split Angle Bars are OFTEN Imitated NEVER Duplicated… So Don’t Be Fooled by Imitation Variations and Copies!!!
Our FXR Division Split Angle T Bars are offered in:
Finished in High Gloss Black Powder Coat… RAW Finish is also available upon request.
In addition to giving you great looks, performance, and comfort, these bars are some of the easiest to internally wire! All of our bars work with Throttle By Wire OR Standard Throttle Cable Assembly.
At a Width of 28.5” End To End…Our FXR Division Split Angle Bars are made with a 12 Degree Wrist Angle… as we have done the R&D and found this to be the most Natural Wrist Position and offers not only the MOST Comfortable Position while your hands are resting on Your Bars, but offers Performance as well… This is NOT Pullback as Pullback is in the Riser… Our “G Series” Bars offer a 1” Pullback in the Rise.
To ensure Maximum Strength, we manufacture all of our bars from 1.250 X .125 steel tubing and DOUBLE Stacked .750 DOM Supports for added Strength and Structural Integrity. All FXR Division bars go through our rigorous quality control process before they leave the shop.
IF YOU ARE PURCHASING OUR FXR DIVISION SPLIT MX BARS TO RUN IN CONJUNCTION WITH THE KRAUS MOTOR CO. RAPTOR PLATE…
12” FXR Division Split Angle Bars DO NOT Require extending cables and/or lines… Your Stock Cables should work just fine!!!
14” FXR Division Split Angle Bars… while we have had customers able to install WITHOUT extending Cables or Wires… it may not always be the case.
If have a Road Glide with a Hydraulic Clutch and/or ABS and you would like to extend your Clutch and ABS Brake Line… Parts RECOMMENDED and we SELL to to do so are on our “Clutch Cables, Brake Lines, and Fittings” page:
CAN BUS HANDLEBAR CONTROL WIRE EXTENSIONS
(1) GUERRILA CABLES Plug N Play CAN bus Xtra Length 34” (42” for 16 inch bars)
(1) Universal Clutch Line Adapter
(1) 70” Goodridge Clutch Line (71” for 16 inch Bars)
(1) Straight Banjo Fitting for Hydraulic Clutch Master Cylinder
UPPER ABS BRAKE HOSE
(1) Goodridge ABS Adapter Block
(1) 60” Goodridge Brake Hose (63” for 16 inch Bars)
(1) Straight Banjo Fitting For Brake Master Cylinder
** If your OEM Perch Clamp has a locating pin… it will be necessary to remove it before installation**
*** Don't forget to get a set of NEW Handlebar Bushings to go with your bars!***
****We normally DO NOT stock bars over 16”… they are Made To Order and may take a little bit longer to manufacture and ship… Orders for Bars over 16” WILL BE subject to a 20% Cancellation Fee if order is cancelled after 7 Days from the Date the Order was placed***
ALL FXR DIVISION PARTS ARE PROUDLY MADE AND MANUFACTURED IN THE USA.
Due to demand, please allow 2-4 weeks for orders to ship.

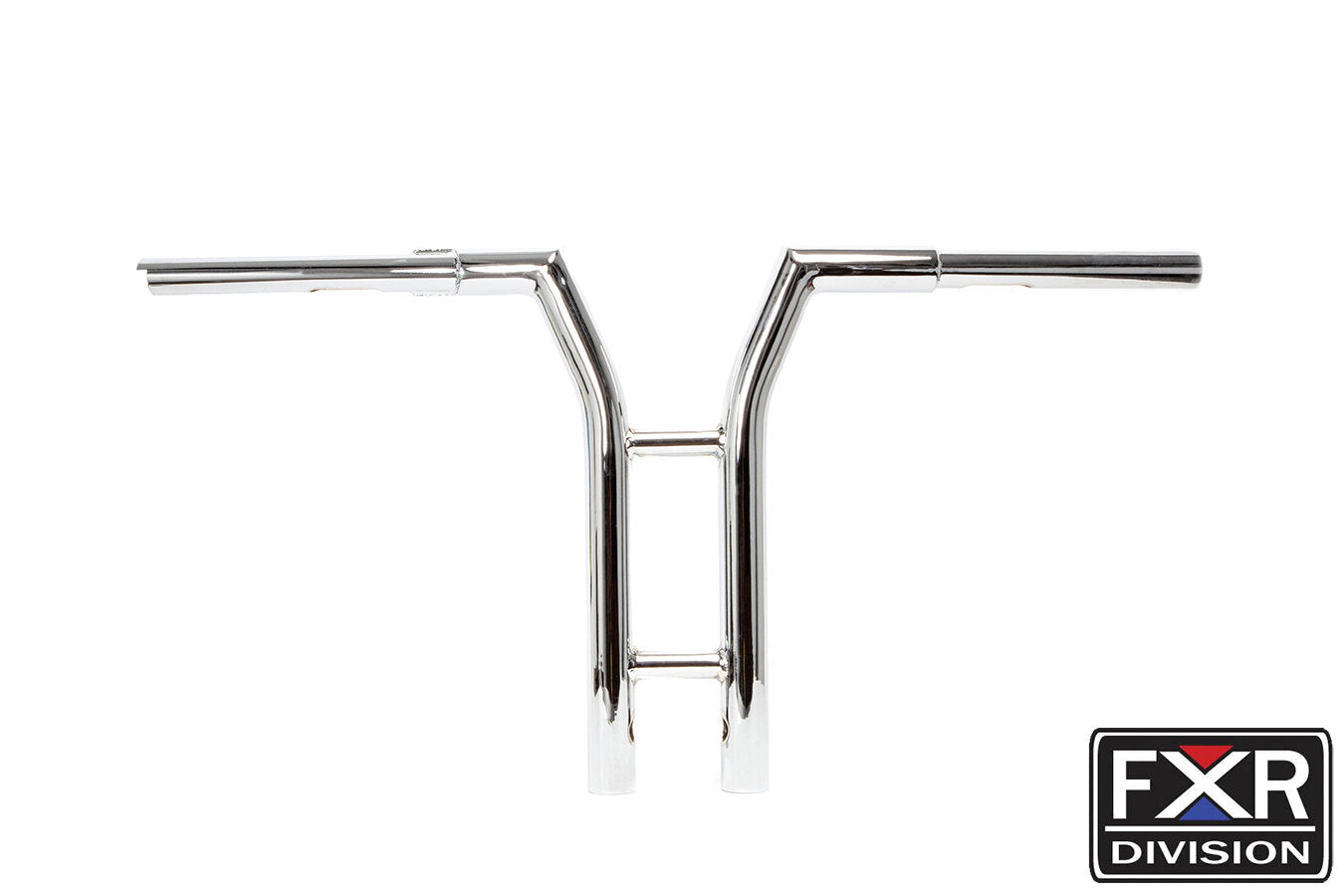

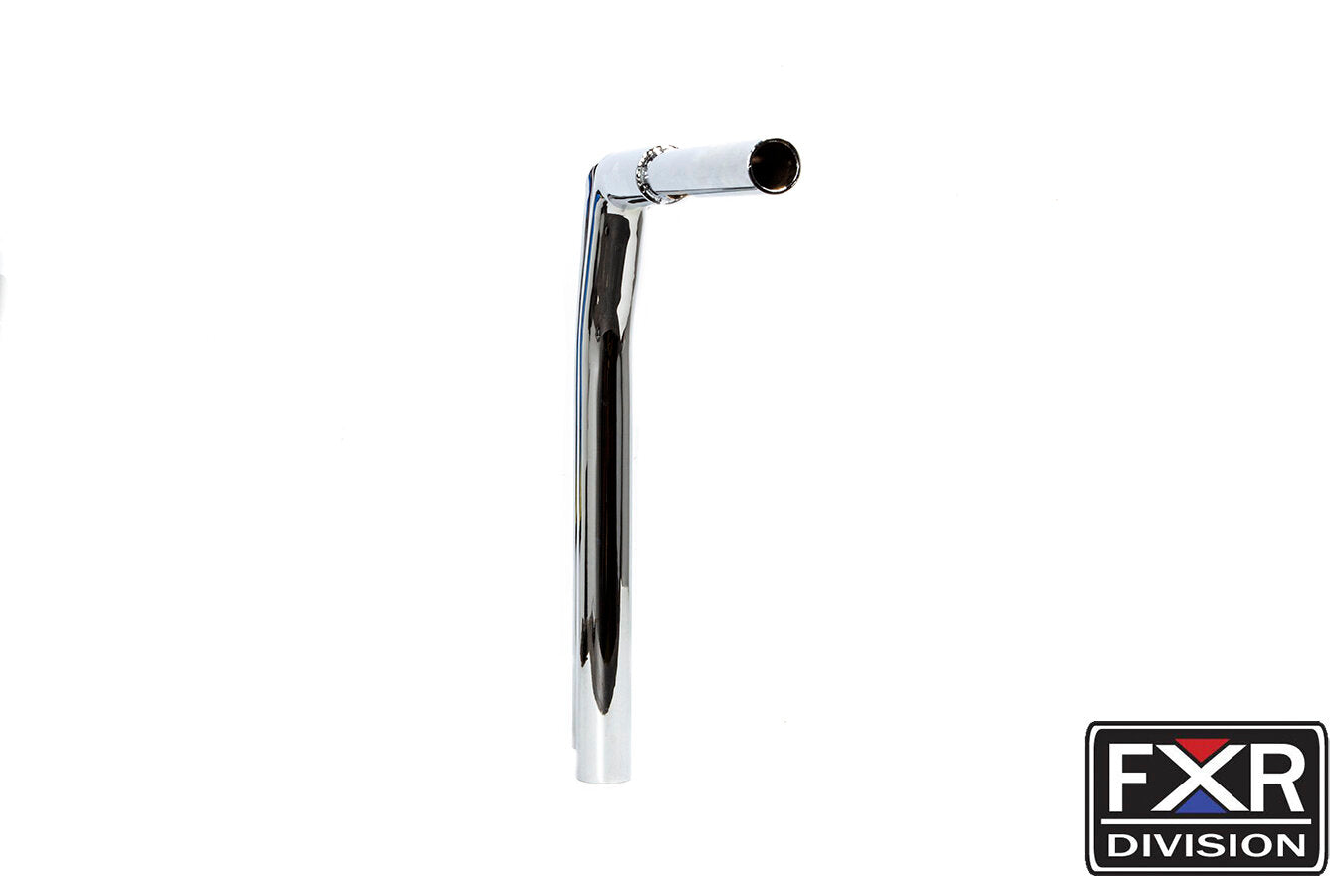

CHROME AVAILABLE BY SPECIAL ORDER
