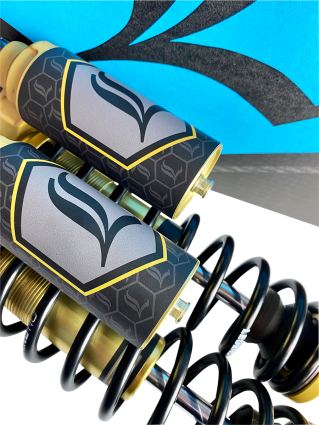

Legend Suspensions Revo ARC Gold - XL Sportster

$1,295.95

Legend

  • FEATURES
  • FITMENTS
  • Available in Black Type III hard-coat anodize
  • REVO coils provide improved plush ride-quality, control and resistance to bottoming-out
  • REVO's extended coil length has larger "sweet spot" without increasing overall shock length
  • Allows minimal pre-load adjustment by hand when changing between riders' weights or loads
  • Adjusts by hand, no tools needed
  • Available in 13" and 14", standard or heavy-duty applications
  • Easy installation and alignment, provided by spherical bearings on both top and bottom
  • 35mm monotube construction
  • Deflective disc valve stacks
  • Balanced/matched piston and base-valve design specific for these motorcycle applications
  • Low friction sealing system and PTFE based sliding bearings for improved performance and feel
  • Seven external knob adjustments allow fine-tuning of rebound
  • Seven external knob adjustments allow fine-tuning of compression
  • Provides optimum rebound and compression performance for any given rider weight, personal ride-quality preference or personal riding style
  • Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference



NOTE: Heavy-duty applications are recommended for 250 lb.+ rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2-up, stunt riding or aggressive riding style.

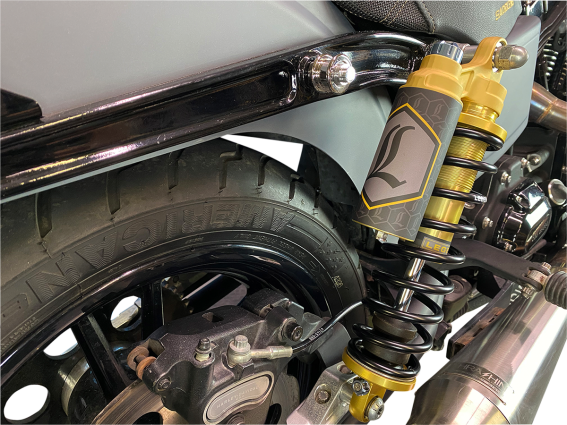

2004+ SPORTSTER
